The best linear actuator systems for processing equipment manufacturers deliver exceptional precision and reliability, making them indispensable in a variety of industrial sectors. These linear actuator systems are designed to enhance the performance of processing equipment, ensuring smooth, consistent movement with high levels of accuracy. The integrated linear stage allows for precise positioning, which is crucial for operations that require repeatability and fine control. Whether used in automation, assembly lines, or material handling processes, these systems are built to improve efficiency, reduce downtime, and support complex tasks with ease. Processing equipment manufacturers will benefit from the durability and advanced functionality of these systems, which are tailored to meet industry-specific demands. Contact us to get a quote.
◆Precision Spec:

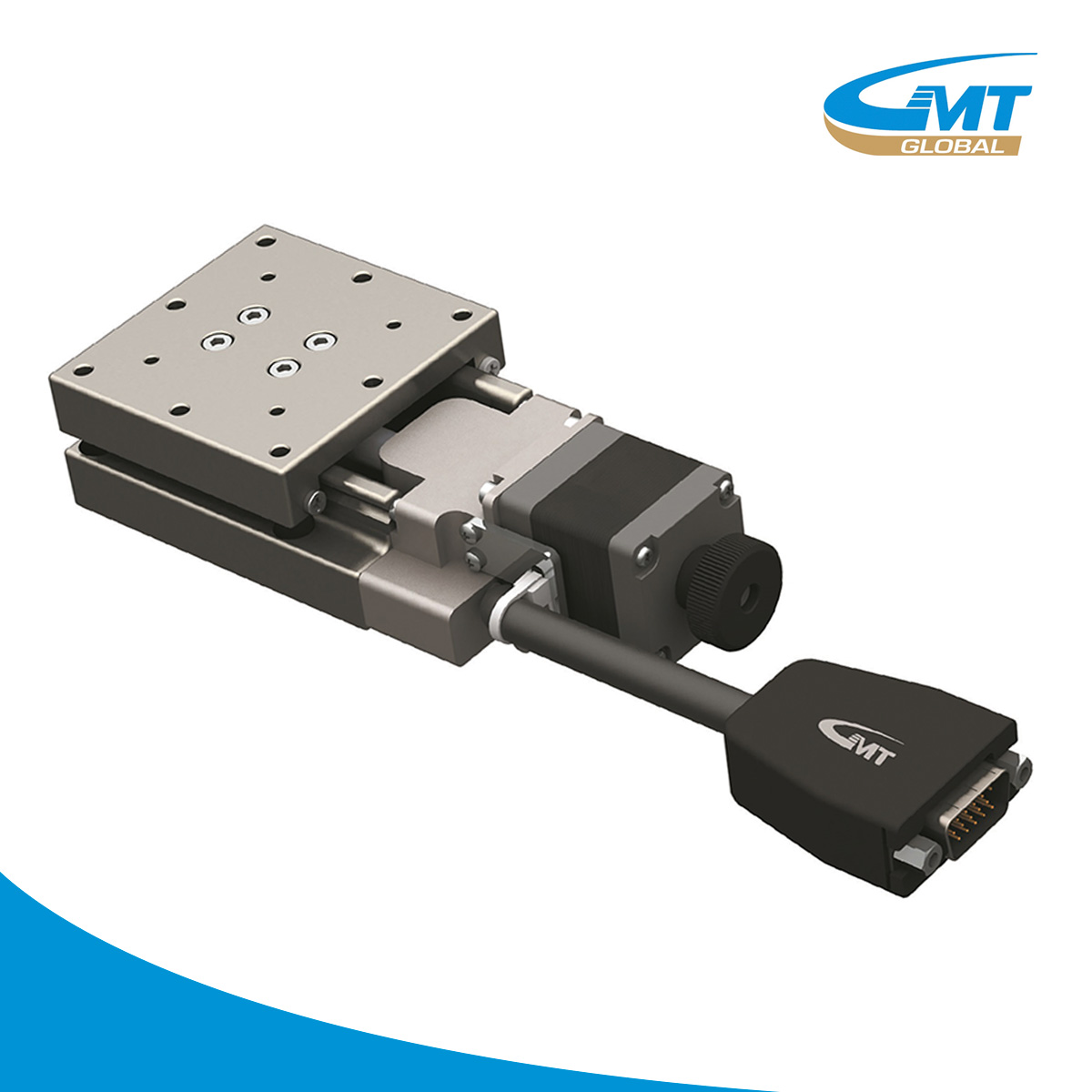

This high-precision linear stage offers a combination of accuracy, durability, and versatility, making it ideal for various industrial applications. With a compact table size of 80 x 80 mm and a travel stroke of 30 mm, it provides efficient motion control in a small footprint. The stage is driven by an Ø8 ball screw with a 1mm lead, ensuring smooth and reliable operation. The linear ball guiding rail further enhances precision, reducing friction and wear for extended longevity.
Available in two material options, stainless steel or carbon steel, both treated with nickel plating, the stage is built to withstand harsh environments while maintaining structural integrity. Weighing only 1.2 kg, it is lightweight yet robust, capable of supporting a load capacity of up to 8 kgf. The precision level is impressive, with a positioning accuracy of 5 μm and repeatability within ±0.5 μm, making it suitable for applications requiring tight tolerances.
The 5-phase stepper motor with double shafts, coupled with high-resolution sensors, ensures precise movement control. The motor is paired with SANYO’s reliable model, designed for high performance. The unit offers a maximum speed of 20 mm/sec, making it efficient for rapid positioning tasks.
For electrical connections, the system uses a 15-pin D-SUB and 12-pin HRS connectors, offering compatibility and flexibility in various setups. The built-in photoelectric origin sensor provides accurate feedback for positioning, contributing to its high precision.
This stage is also equipped with dynamic straightness and parallelism corrections, with dynamic straightness maintained within 2 μm and dynamic parallelism within 10 μm, ensuring optimal performance in motion. The power requirements are straightforward, operating on 24V ± 10%, making it easy to integrate into existing systems.
With its advanced features, precision specifications, and durable construction, this linear stage is an excellent choice for industries requiring fine motion control, such as automation, robotics, and semiconductor manufacturing.
